Fuse Locations

Honda Pilot / Honda Pilot 2009-2022 Owner's Manual / Handling the Unexpected / Fuses / Fuse Locations

If any electrical devices are not working, turn the ignition switch to LOCK fuse is blown. and check to see if any applicable fuse is blown.

Fuse locations are shown on the fuse box cover. Locate the fuse in question by the fuse number and box cover number.

Engine Compartment Fuse Box

Located on the passenger’s side, near the windshield washer reservoir. Push the tabs to open the box.

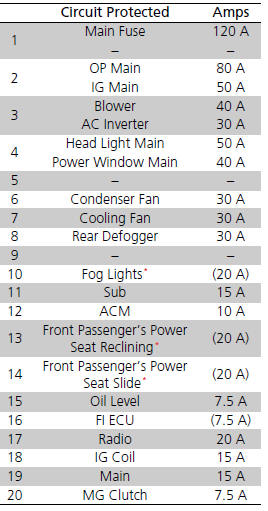

Circuit protected and fuse rating

Circuit protected and fuse rating

Engine Compartment Sub Fuse Box

Engine Compartment Sub Fuse Box

Located near the battery. Push the tabs to open the box.

Circuit protected and fuse rating

Circuit protected and fuse rating

Interior Fuse Box

Interior Fuse Box

Located under the dashboard.

Fuse locations are shown on the label on the side panel. Locate the fuse in question

Fuse locations are shown on the label on the side panel. Locate the fuse in question by the fuse number and label number.

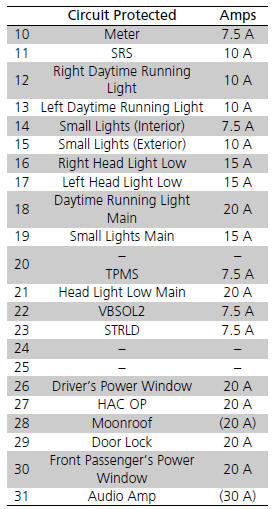

Circuit protected and fuse rating

Cargo Area Fuse Box

Cargo Area Fuse Box

Located on the left side of cargo area. Remove the cover by prying on the edge of the cover using a flat-tip screwdriver.

 - Wrap the flat-tip screwdriver with a cloth to prevent scratches.

Fuse locations are shown on the fuse box cover.

Fuse locations are shown on the fuse box cover.

Locate the fuse in question by the fuse number and box cover number.

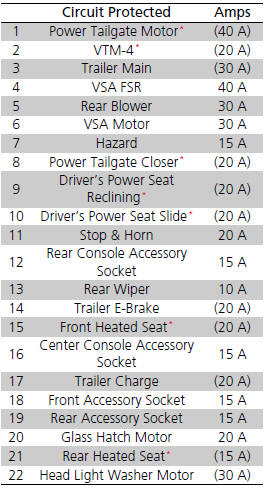

Circuit protected and fuse rating
