Multi-Information Display

Honda Pilot / Honda Pilot 2009-2021 Owner's Manual / Instrument Panel / Gauges and Displays / Multi-Information Display

Shows the odometer, trip meter, outside temperature indicator, and other gauges. It also displays important messages such as warnings and other helpful information.

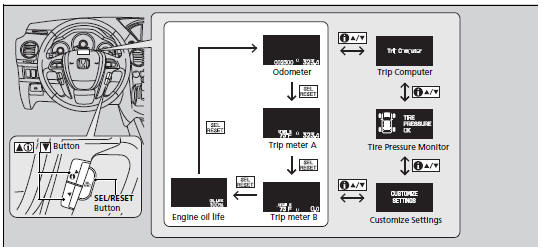

Switching the Display

Press the   (information) button or the SEL/RESET / button to change the display.  (information) button or the SEL/RESET button to change the display.

Odometer

Odometer

Shows the total number of miles or kilometers that your vehicle has accumulated.

Trip Meter

Shows the total number of miles or kilometers driven since the last reset. Meters A and B can be used to measure two separate trips.

Resetting a trip meter

To reset a trip meter, display it, then press and hold the SEL/RESET button. The trip meter is reset to 0.0.

Trip Meter

Switch between trip meter A and trip meter B by pressing the SEL/RESET button.

Outside Temperature

Shows the outside temperature in Fahrenheit (U.S.) or Celsius (Canada).

Adjusting the outside temperature display

Adjust the temperature reading up to ±5°F or ±3°C if the temperature reading seems incorrect.

Outside Temperature

The temperature sensor is in the front bumper. Road heat and exhaust from another vehicle can affect the temperature reading when your vehicle speed is less than 19 mph (30 km/h). It may take several minutes for the display to be updated after the temperature reading has stabilized. Use the multi-information display’s customized features to correct the temperature.

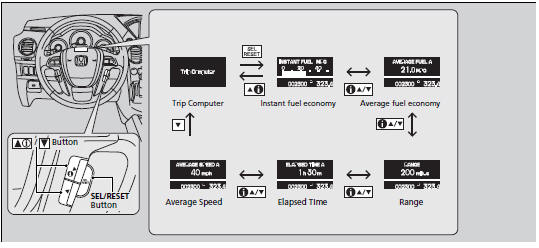

Trip Computer

Shows the instant fuel economy, average fuel economy, range, elapsed time, and average speed.

Instant Fuel Economy

Shows the instant fuel economy as a bar graph in mpg (U.S.) or l/100 km (Canada).

Average Fuel Economy

Shows the estimated average fuel economy of each trip meter in mpg (U.S.) or l/100 km (Canada). The display is updated at set intervals. When a trip meter is reset, the average fuel economy is also reset.

Average Fuel Economy

You can change when to reset the average fuel economy.

Range

Shows the estimated distance you can travel on the remaining fuel. This distance is estimated from the fuel economy of your trips in the past.

Elapsed Time

Shows the time elapsed since the last time Trip A or Trip B was reset.

Elapsed Time

You can change when to reset the elapsed time.

Average Speed

Shows the average speed in mph or km/h since the last time Trip A or Trip B was reset.

Average Speed

You can change when to reset the average speed.

Tire Pressure Monitor

Shows each tire's pressure.

Engine Oil Life

Shows the remaining oil life and Maintenance MinderTM.

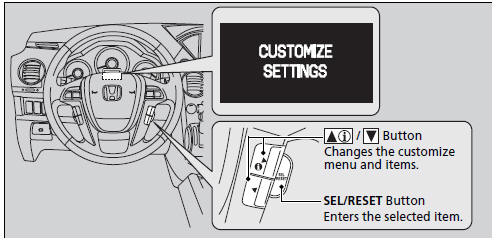

Customized Features

Use the multi-information display to customize certain features.

Use the multi-information display to customize certain features.

Select the CUSTOMIZE SETTINGS by pressing the  button while the ignition switch isin ON    and the vehicle is button while the ignition switch is in ON  at a complete stop. Press the SEL/ RESET button to change the display to the CHG  and the vehicle is at a complete stop. Press the SEL/ RESET button to change the display to the CHG SETTING.

Customized Features

Customized Features

To customize other features, press the button.  / Customization is possible when you see the driver’s ID (DRIVER 1 or DRIVER 2) button.

Customization is possible when you see the driver’s ID (DRIVER 1 or DRIVER 2) on the CHG SETTING screen. The driver’s ID indicates which remote transmitter you have used to unlock the driver’s door. The customized settings are recalled every time you unlock the driver’s door with that remote.

When you customize settings: Shift to.

Customization flow

Press the button.  /  button.

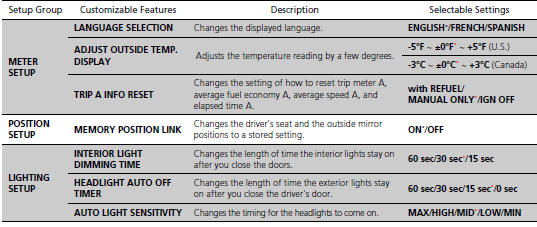

List of customizable options

List of customizable options

Example of customization settings

Example of customization settings

The steps for changing the TRIP A INFO RESET setting to with REFUEL are shown below. The default setting for TRIP A INFO RESET is MANUAL ONLY.1. Press and release   /

1. Press and release button until CUSTOMIZE SETTINGS appears  /  on the display. button until CUSTOMIZE SETTINGS appears on the display.

2.Press the SEL/RESET button. u CHG SETTING appears on the display.

3.Press and release   /

3.Press and release  button until CUSTOMIZE SETTINGS appearson the display. button until CUSTOMIZE SETTINGS appears on the display.

4.Press the SEL/RESET button again.

LANGUAGE SELECTION appears first on the display.

5.Press the   /

5.Press the   button until TRIP A INFO RESET  / appears on the display, then press the SEL/RESET button.  button until TRIP A INFO RESET appears on the display, then press the SEL/RESET button.

The display switches to the setup screen, where you can select with REFUEL, MANUAL ONLY, IGN OFF, or EXIT.

6.Press the button and select with REFUEL, thenpress the SEL/RESET button. button and select with REFUEL, then press the SEL/RESET button.

The with REFUEL setup screen appears, then the display returns to the customize item screen.

7.Press the  /

7.Press the   button until EXIT appears on / the display, then press the SEL/ RESET button.  button until EXIT appears on the display, then press the SEL/ RESET button.

8.Repeat Step 7 until you return to the normal screen.
