Specifications

Honda Pilot / Honda Pilot 2009-2024 Owner's Manual / Information / Specifications

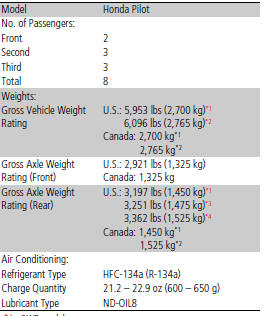

Vehicle Specifications

*1: 2WD models

*1: 2WD models

*2: 4WD models

*3: LX models with 4WD

*4: Except LX models with 4WD

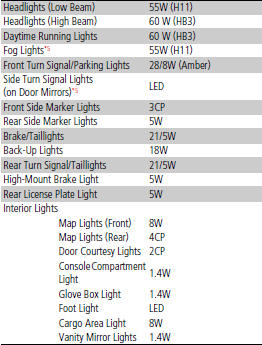

Light Bulbs

Light Bulbs

*5: Not available on all models

*5: Not available on all models

*3: U.S. LX

*3: U.S. LX

*4: Except U.S. LX
