Parking Sensor System

Honda Pilot / Honda Pilot 2009-2024 Owner's Manual / Driving / Parking Your Vehicle / Parking Sensor System

The corner and rear center sensors monitor obstacles around your vehicle, and the beeper and display let you know the approximate distance between your vehicle and the obstacle.

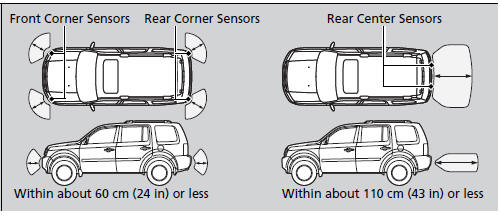

The sensor location and range

Parking Sensor System

Parking Sensor System

Even when the system is on, always confirm if there is no obstacle near your vehicle before parking.

The system may not work properly when:

 - The sensors are covered with snow, ice, mud, or dirt.

 - The vehicle is on an uneven surface, such as grass, bumps, or a hill.

 - The vehicle has been out in hot or cold weather.

 - The system is affected by some electric devices that generate ultrasonic waves.

 - Driving in bad weather.

The system may not sense:

 - Thin or low objects.

 - Sonic-absorptive materials, such as snow, cotton, or sponge.

 - Objects directly under the bumper.

Do not put any accessories on or around the sensors.

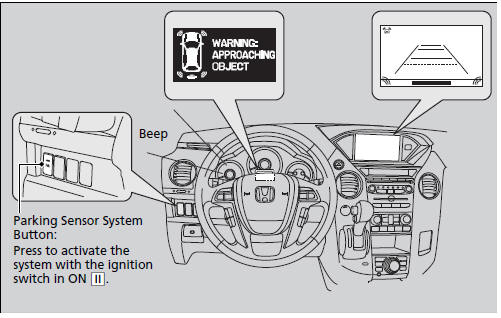

When you activate the system

The indicator in the button comes on and the beeper sounds when the system is

The indicator in the button comes on and the beeper sounds when the system is on.

The corner sensors start to detect an obstacle when the shift lever is in any position other than speed is less than 5 mph (8 km/h). The rear center sensors start to detect an obstacle , and the vehicle speed is less than 5 mph (8 km/h). The rear center sensors start to detect an obstacle when the shift lever is in vehicle speed is less than 5 mph (8 km/h). , and the vehicle speed is less than 5 mph (8 km/h).

Parking Sensor System

When you turn the ignition switch to ON selected condition. , the system will be in the previously selected condition.

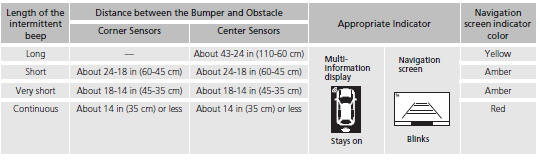

When the distance between your vehicle and obstacles behind becomes shorter

The parking sensor system on navigation screen

The parking sensor system on navigation screen

 - An appropriate indicator blinks when there are any obstacles around the

 - An appropriate indicator blinks when there are any obstacles around the parking sensors. The color of the indicator changes in accordance with the distance between your vehicle and obstacles.

 - An appropriate indicator stays on in red when there is a problem with the corresponding parking sensor.

Turning off All Rear Sensors

1. Make sure that the parking sensor system is not activated. Turn the ignition switch to LOCK 2. Press and hold the parking sensor system button, and turn the ignition switch .

2. Press and hold the parking sensor system button, and turn the ignition switch to ON 3. Keep pressing the button for ten seconds. Release the button when the indicator .

3. Keep pressing the button for ten seconds. Release the button when the indicator in the button flashes.

4. Press the button again. The indicator in the button goes off.

 - The beeper sounds twice. The rear sensors are now turned off.

To turn the rear sensors on again, follow the above procedure. The beeper sounds three times when the rear sensors come back on.

Turning off All Rear Sensors

When you shift to in the parking sensor system button blinks as a reminder that the rear sensors have , the indicator in the parking sensor system button blinks as a reminder that the rear sensors have been turned off.
