Specifications

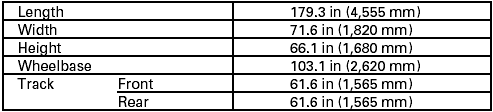

Dimensions
Weights

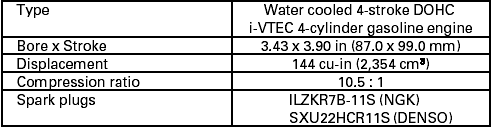

Engine

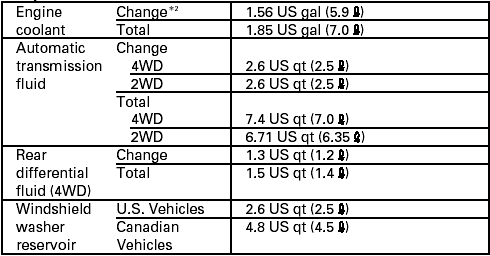

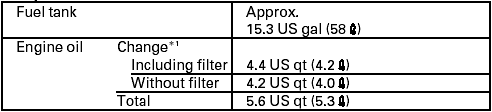

Capacities
Capacities
*1: Excluding the oil remaining in the engine
*2: Including the coolant in the reserve tank and that remaining in the engine
Reserve tank capacity:
0.16 US gal (0.6 l)
Seating Capacities
Air Conditioning
Lights
Battery
Fuses
Alignment

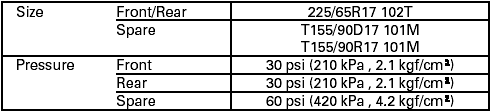

Tires
