Rear Wiper/Washer

Honda Pilot / Honda Pilot 2009-2023 Owner's Manual / Controls / Operating the Switches Around the Steering Wheel / Wipers and Washers / Rear Wiper/Washer

The rear wiper and washer can be used when the ignition switch is in ON .

Wiper switch (OFF, INT, ON)

Wiper switch (OFF, INT, ON)

Change the wiper switch setting according to the amount of rain.

Washer Sprays while you rotate the switch to this position. Hold it to activate the

Sprays while you rotate the switch to this position. Hold it to activate the wiper and to spray the washer. Once released, it stops operating after a few more sweeps.

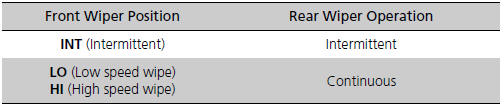

Operating in reverse

When you shift the transmission to  rear wiper operates automatically as follows even if its switch is off. with the front wiper activated, the rear wiper operates automatically as follows even if its switch is off.

Wipers and Washers

Wipers and Washers

If the wiper stops operating due to any obstacle such as the build-up of snow, park the vehicle in a safe place.

Rotate the wiper switch to OFF, and turn the ignition switch to ACCESSORY , then remove the obstacle. or LOCK The wiper motor is equipped with a breaker that may stop motor operation temporarily , then remove the obstacle.

The wiper motor is equipped with a breaker that may stop motor operation temporarily to prevent an overload. Wiper operation will return to normal within a few minutes, once the circuit has returned to normal.
