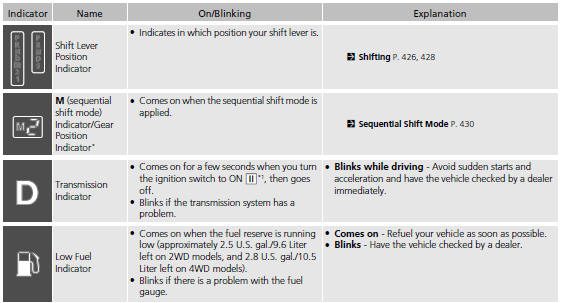

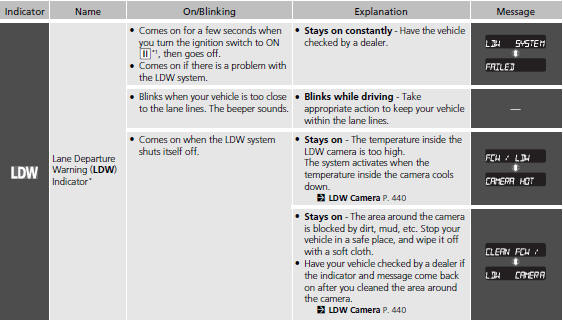

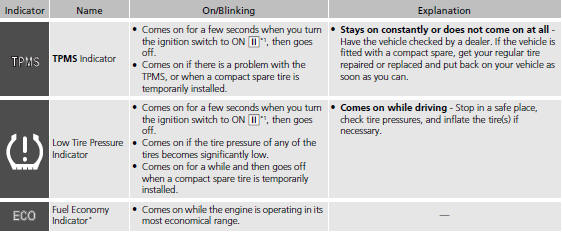

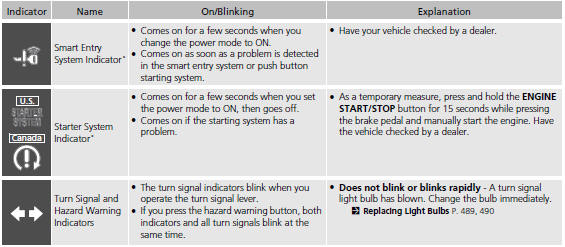

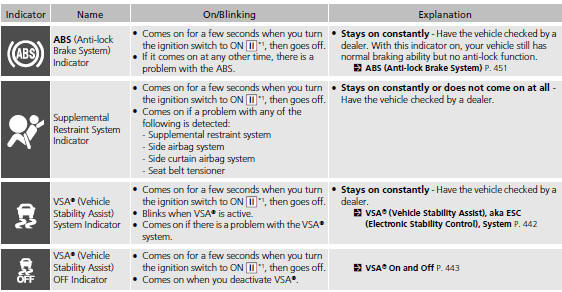

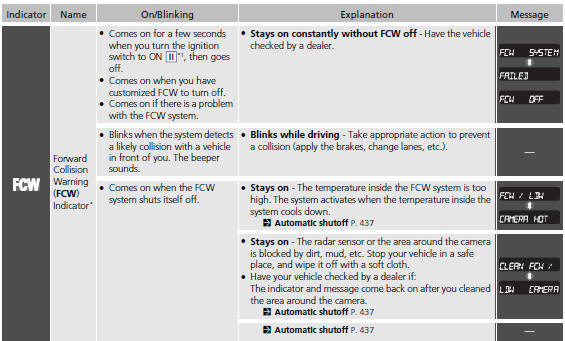

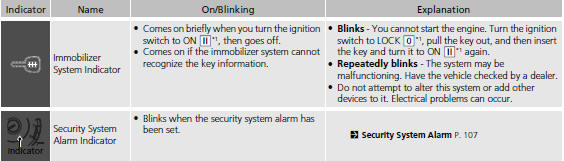

Indicators

Honda Crosstour / Honda Crosstour 2010-2025 Owner's Manual / Instrument Panel / Indicators

*1:Models with the smart entry system have an ENGINE START/STOP button

*1:Models with the smart entry system have an ENGINE START/STOP button instead of an ignition switch.

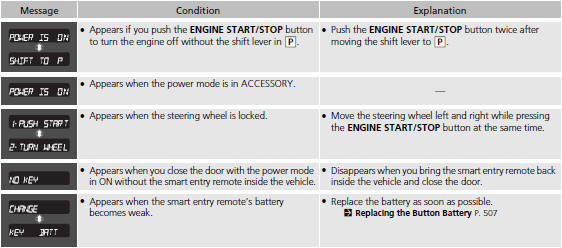

Information Display Warning and Information Messages

The following messages appear only on the information display.

Models with smart entry system

Models with smart entry system
