Fuse Locations

Honda Crosstour / Honda Crosstour 2010-2024 Owner's Manual / Handling the Unexpected / Fuses / Fuse Locations

If any electrical devices are not working, turn the ignition switch to LOCK and and check to see if any applicable fuse is blown.

■Engine Compartment Fuse Box

Located near the brake fluid reservoir. Push the tabs to open the box.

Fuse locations are shown on the fuse box cover. Locate the fuse in question by the fuse number and box cover number.

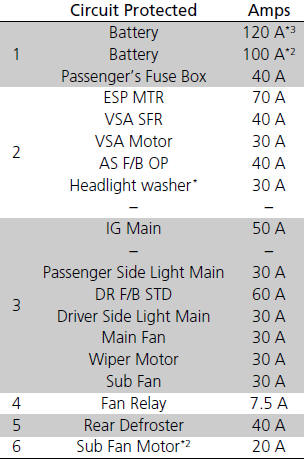

■ Circuit protected and fuse rating

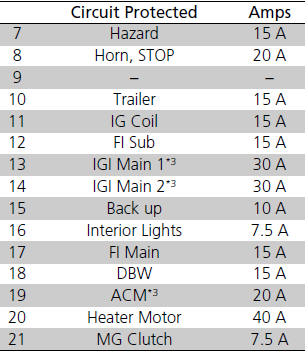

■ Circuit protected and fuse rating

*1:Models with the smart entry system have an

*1:Models with the smart entry system have an ENGINE START/STOP button instead of an ignition switch.

*2:4-cylinder models *3:6-cylinder models

■Interior Fuse Box

Locate the fuse in question by the fuse number and label number.

Driver side

Driver side

Located under the dashboard.

Fuse locations are shown on the label under the dashboard.

Passenger side

Passenger side

Located on the lower side panel. Take off the cover to open.

Fuse locations are shown on the fuse box cover.

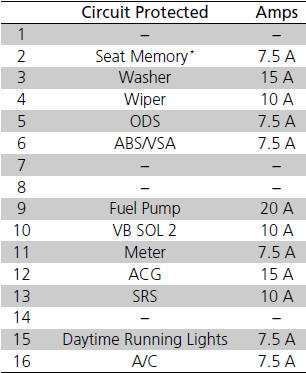

■ Circuit protected and fuse rating

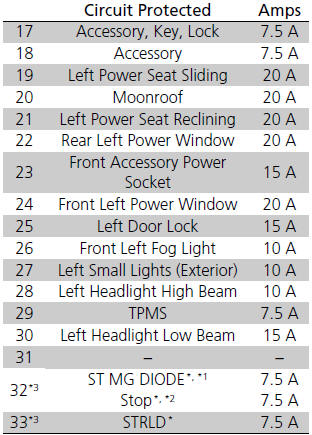

Driver side

*1:4-cylinder models

*1:4-cylinder models *2:6-cylinder models *3:Sub fuse box

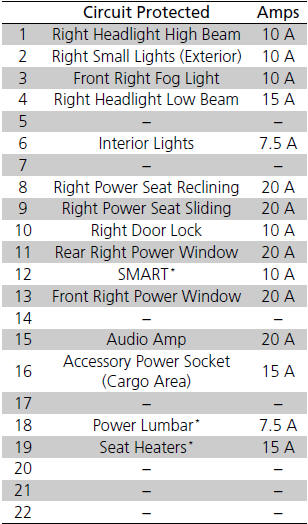

Passenger side

Inspecting and Changing Fuses
