Climate Control System

Honda Pilot / Honda Pilot 2009-2025 Owner's Manual / Quick Reference Guide / Controls / Climate Control System

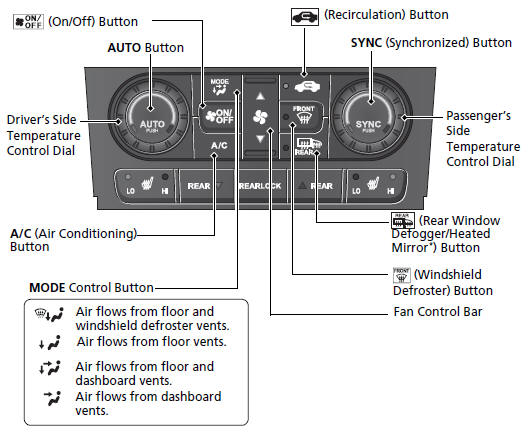

Press the AUTO button to activate the climate control system.

Press the on or off.button to turn the system on or off.

Press the windshield. button to defrost the windshield.

Models with navigation system

The climate control system is voice operable. See the navigation system manual for complete details.

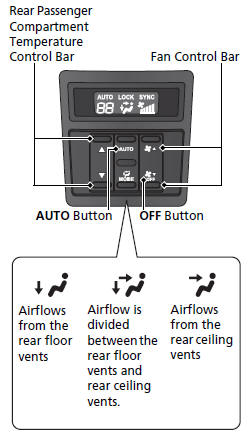

Rear Climate Control

Rear Climate Control

Press the AUTO button to activate the rear climate control system.

Press the OFF button repeatedly to turn the system off.
